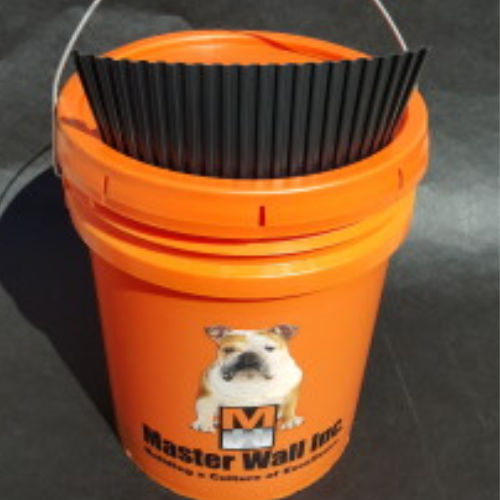

SuperiorShield DV Roll is a lightweight corrugated plastic designed for use where drainage or venting is required without heavy plastic accessories. DV Roll can be used with backwrapped application techniques in Master Wall® Systems and as part of a compartmentalized venting assembly.

Features & Benefits:

• Defines a drain/vent plane
• Corrugated strip
• Ensures a 1/8″ gap for drainage in water-managed EIFS
• Helps prevent the accidental sealing of the drainage gap

Systems:

• Rollershield Drainage CIFS®
• Aggre-flex Drainage EIFS
• QRW1 Drainage EIFS

Packaging:

• 2.8” x 50’ (71mm x 15.2 m) roll
• 5 rolls/bundle – 250’ (76m)
• 6 bundles/box – 1500’ (457m)

Shelf Life: Not limited

Storage: Store in a cool, dry place until ready for use

Technical Data:

• Flame spread (ASTM E84): 5
• Smoke Developed (ASTM E84): 250
• Class A Rated
• Drainage Efficiency (ASTM E2273): Minimum 97.8%

Application Procedure

General—The substrate must be clean, dry, structurally sound, and free of efflorescence, oil, grease, form release agents, and curing compounds.

Job Conditions—The Air and substrate temperatures for applying the DV Roll should be within the limitations of the adhesives used in the installation.

Temporary Protection – Protect until insulation application is completed.

Installation – Apply DV Roll where required, such as at the building foundation line, window and door heads, etc. At foundations, apply over a water barrier that is lapped over the foundation at least 1” (25 mm).

Attach the DV Roll with either SuperiorShield SMP Sealant or a single-part polyurethane: Sonolastic® NP1™, Sikaflex® One-Part Polyurethane, or Tremco Vulkem Polyurethane Sealant.

Backwrap mesh may be attached through the DV Roll using nails, staples, or the adhesives listed above.

For adhesively applied EIFS, limit adhesive over the DV Roll as it may cause irregularities in the wall. Depending upon wall conditions, the insulation board may need to be routed to the backside to lessen irregularities.

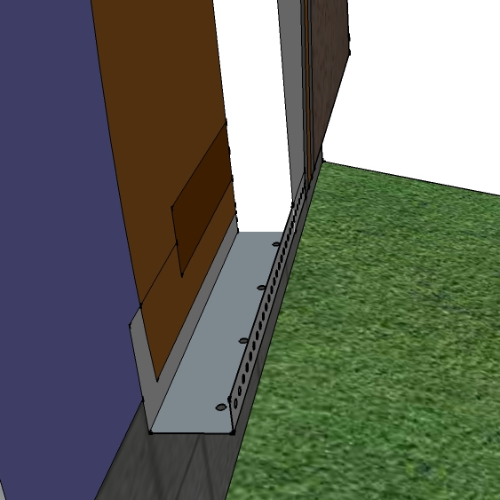

Plastic accessories are used as an alternative to back wrapping Exterior Insulation and Finish Systems (EIFS)

• Eliminates back wrapping
• Drainage versions available
• UV Resistant
• Good bonding surface for sealants

Systems

• Aggre-flex EIFS
• Aggre-flex Drainage EIFS
• QRW1 Drainage EIFS
• Rollershield Drainage CIFS®

Product Information:

• Packaging: Typically 10′ lengths
• Weight: Varies
• Typical Widths: 3/4″ to 4″ (19-102 mm)
• VOC: Vinyl Chloride Monomer
• Manufacture Locations: verify with the manufacturer

Manufacturers:

• Amico Building Products 800-366-2642
• Plastic Components 800-327-7077
• Vinyl Corp. 800-648-4695
• Wind-Lock 800-872-5625

Product Test Standards
ASTM D1784, ASTM C1063, and ASTM D4216 May not be suitable for non-combustible construction assemblies.

Application Procedure

1. EIFS accessories shall be erected true to the line (allowable tolerance of ¼” in 10′ (6.4 mm in 3.05m), level, plumb, squared, or curved.

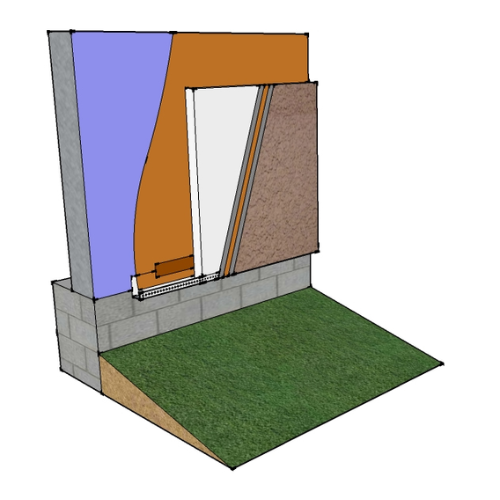

2. Casing beads at grade (drainage or non-drainage) shall be placed not less than 1″ (25 mm) below the joint formed by the foundation and framing and placed not less than 6″ (152 mm) above raw earth or 2″ (51 mm) above paved surfaces.
3. Drainage systems shall have the weather-resistive barrier lapped into the casing bead.
4. Attach accessories to the substrate in such a manner as to ensure proper alignment during the application of the EIFS. Accessories shall be secured at not more than 16″ (406 mm) centers for non-nailable substrates and 8″ (203 mm) on center for nailable.
5. Seal all butt joints, intersections, ends, and corners at the time of installation using an elastomeric sealant. Allow the silicone-based sealant to fully cure before proceeding with insulation board application.

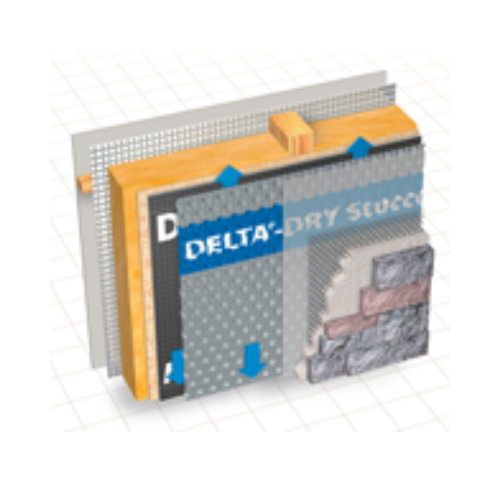

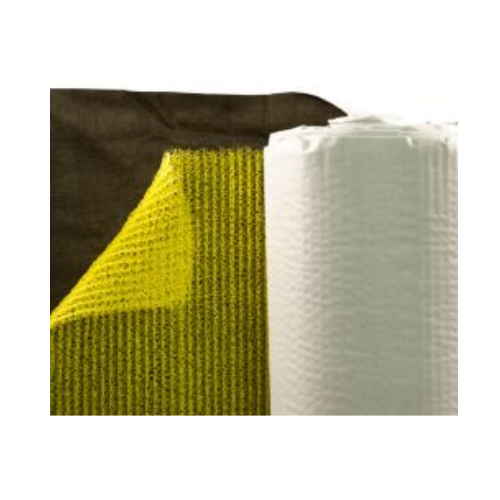

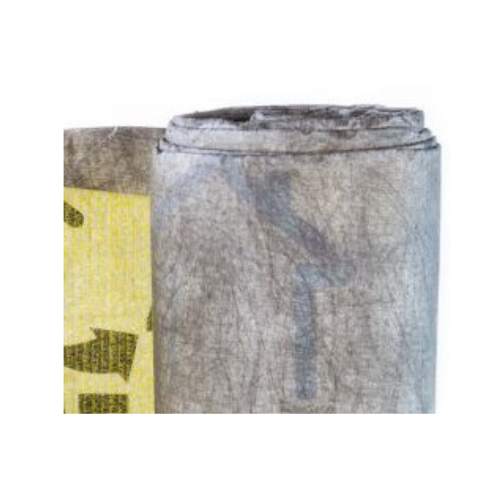

Drainage media has been used behind Master Wall® Systems for many years.  The drainage media can vary from a very thin cross section material, a thicker version designed to prevent capillary action to a true ventilated wall cavity.  The designs will vary and Master Wall® is available to help coordinate detailing as needed.

Data Sheet

APPLICATION PROCEDURE

Job Conditions – Follow the manufacturer’s instructions for the application of drainage media.

Master Wall Inc. approves the following manufacturers:

The information in this product data sheet conforms to the standard detail recommendations and specifications for the installation of Master Wall Inc. products and is presented in good faith. Master Wall® Inc. assumes no liability, expressed or implied, as to the architecture, engineering, or workmanship of any project. This information may be concurrent with or superseded by other applicable documents, such as specifications and details. Contact Master Wall® Inc. for the most current product information.

Stucco accessories help gauge the thickness of stucco systems, control stucco movement, and form corners. Lath reinforcement reinforces the stucco.

Systems:

• OCS Fiberstucco
• Cemplaster Stucco

Product Information:

• Packaging: Typically 10′ lengths
• Weight: Varies
• VOC: Vinyl Chloride Monomer (Plastic)
• Manufacture Locations: verify with manufacturer

Typical Grounds (thickness):

• 3/8″ (9.5mm)
• 1/2″ (13mm)
• 5/8″ (16mm)
• 3/4″ (19mm)
• 7/8″ (22mm)

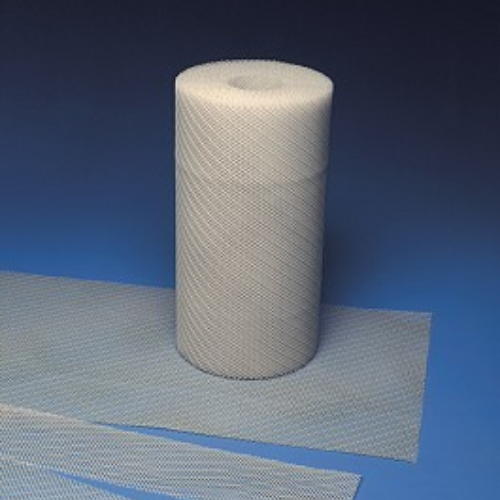

Lath Reinforcement:

• OCS01, 3/8″ thick No. 17 gauge galvanized steel woven wire fabric, ASTM C1032
• OCS02, ½” thick 2.5 lb./yd2 (1.4 kg/m2) self-furred galvanized steel diamond mesh metal lath, ASTM C 847
• OCS02-SS, ½” thick 2.5 lb./yd2 (1.4 kg/m2) self-furred stainless steel diamond mesh metal lath, ASTM C 847
• OCS03, ¾ ” thick 3.4 lb./yd2 (1.8 kg/m2) self-furred galvanized steel diamond mesh metal lath, ASTM C 847
• OCS03-SS, ¾ ” thick 3.4 lb./yd2 (1.8 kg/m2) self-furred stainless steel diamond mesh metal lath, ASTM C 847, 304 or 316 stainless steel

Manufacturers (Material Type)

• Amico Building Products 800-366-2642 (1,2,3,4)
• CEMCO 800-775-2362 (2)
• ClarkDietrich Building Systems 513-870-1100 (1,2,3)
• Plastic Components 800-327-7077 (1)
• Vinyl Corp. 800-648-4695 (1)
• Wind-Lock 800-872-5625 (1)

Product Test Standards
ASTM A653, ASTM B69, ASTM C841, ASTM C847, ASTM C926, ASTM C1063, ASTM D1784, Plastic may not be suitable for non-combustible construction assemblies.

Data Sheet

Application Procedure

CASING BEAD AND CONTROL JOINT ATTACHMENT

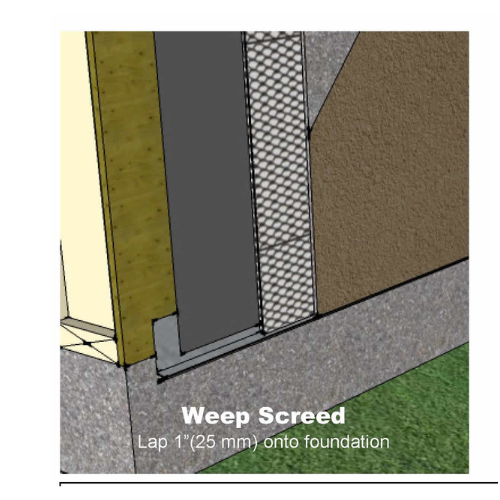

A. Install casing beads at OCS terminations—doors, windows, back-to-back expansion joints, and other through-wall penetrations as needed to gauge OCS thickness. Attach at 6 inches (152 mm) on center into the substrate with appropriate fasteners.

B. Install expansion joints (or back-to-back casing beads) at building expansion joints, where the OCS is to be installed over dissimilar construction or substrates at changes in building height, floor lines, columns, and cantilevered areas, as shown on construction documents. Attach the center of the substrate at 6 inches (152 mm) with appropriate fasteners.

C. For lath applications, install control joints at a maximum of 144 ft2 (13.4 m2) as shown on the construction documents or clarify where needed. Install full accessory pieces where possible and avoid small pieces. Seal adjoining pieces by embedding ends in sealant. Abut horizontal into vertical joint accessories. Attach at 6-inch (178 mm) centers with appropriate fasteners on one side where framing is present or temporarily secure, then wire tie to metal lath 6-inch (178 mm) centers. One side should be wire-tied to allow for thermal movement.

METAL REINFORCEMENT ATTACHMENT
A. General–install metal lath with long dimensions at right angles to structural framing. Terminate lath at expansion and control joints. Do no install continuously beneath joints.

B. Seams/overlaps – overlap side seams a minimum of ½ inch (13 mm) and end seams a minimum of 1 inch (25 mm). Stagger end seams. Overlap casing beads and expansion joints minimum of 1 inch (25 mm) over the narrow wing accessories and 2 inches (51 mm) over expanded flange accessories.
C. For sheathing/framing applications, fasten securely through sheathing into structural framing at 6 inches (152 mm) on center maximum vertically and 16 inches on center horizontally*. Wire tie horizontal laps at 8 inches (204 mm) on center at side laps, accessory overlaps, and where end laps occur between supports. If a paper-backed lath is used, follow the installation instructions for a metal lath. Lap lath over lath, not paper to lath overlap. The paper backing must be lapped in shingle style for horizontal overlaps behind the lath-to-lath overlap.

D. For masonry/concrete lath applications, fasten securely to the substrate every 6 inches (152 mm) on center maximum vertically and 16 inches on center horizontally* with an approved fastener. Wire tie horizontal laps at 8 inches (204 mm) on center at: side laps, accessory overlaps, and where end laps occur between supports.

E. Where control joints aren’t used off interior corners, attach an additional 9″ x 12″ (23 cm x 30 cm) strip of
metal lath diagonally.

(*Note: The type of fastener selected, as well as its layout and pullout or withdrawal value from the supporting construction, must be verified and approved by the project engineer/architect concerning design wind load and local building code requirements).

The information in this product data sheet conforms to the standard detail recommendations and specifications for the installation of Master Wall® Inc. products and is presented in good faith. Master Wall Inc. assumes no liability, expressed or implied, as to the architecture, engineering, or workmanship of any project. This information may be concurrent with or superseded by other applicable documents, such as specifications and details. Contact Master Wall® Inc. for the most current product information.

DuPont™ adhesives may be used to adhere Master Wall CIFS® insulation board to all approved substrates, as well as a filler for insulation board gaps. Each tank adheres to large areas quickly and may be used in low-temperature conditions

Features and Benefits:

• Ready to use
• Single component
• Lightweight with excellent coverage
• Cures as fast as one hour
• Wide Temperature Range—33°F (1°C) to 110°F (43°C)
• VOC Free

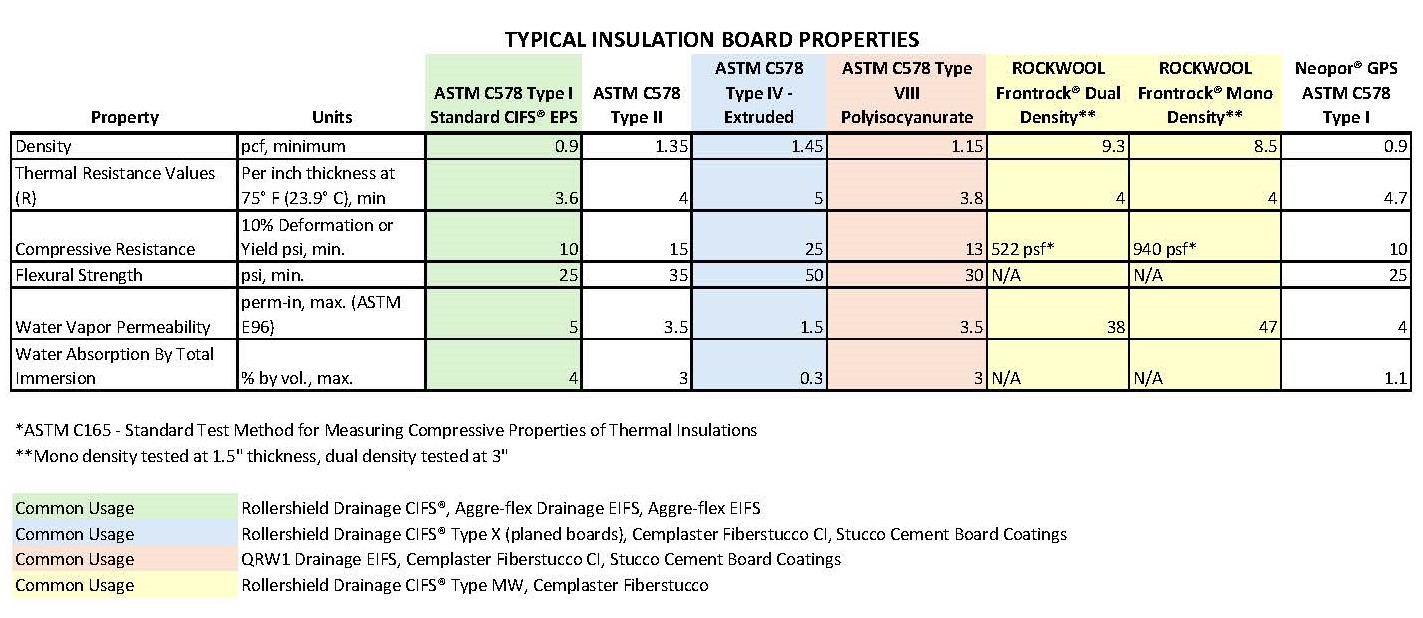

Master Wall Inc.® Rollershield Drainage CIFS® is a Continuous Insulation and Finish System applied over PROSOCO R●Guard® Cat 5® air and water-resistive barrier. Vertical adhesive channels in the Rollershield Drainage CIFS® drain away any incidental water entering the system. This highly adaptable cladding is suitable for both new and retrofit construction.

Features and Benefits:

• 99% Drainage Efficiency
• High Insulating Value (R-4 per inch)
• CFC & HCFC Free Insulation Board, Recyclable
• Medium Impact Resistance is standard

Master Wall Inc.® Rollershield Drainage CIFS® is a Continuous Insulation and Finish System applied over PROSOCO Spray Wrap MVP air and water-resistive barrier. Vertical adhesive channels in the Rollershield Drainage CIFS® drain away any incidental water entering the system. This highly adaptable cladding is suitable for both new and retrofit construction.

Features & Benefits:

• 99% Drainage Efficiency
• High Insulating Value (R-4 per inch)
• CFC & HCFC Free Insulation Board, Recyclable
• Medium Impact Resistance is standard
