Rollershield Drainage CIFS® Type MW

Master Wall Inc.® Rollershield Drainage CIFS® type MW is a high performing continuous insulation system using noncombustible mineral wool insulation that features our fluid applied air and water barrier and flashing with excellent water holdout. Vertical adhesive channels drainage channels are used to drain away incidental water. The insulation is fully reinforced and finished with our Superior Finish or any of our specialty finishes.

Features and Benefits

  • 99% Drainage Efficiency
  • Noncombustible mineral wool insulation
  • Medium Impact Resistance is standard
  • 10-year limited warranty
  • Durable and Efficient SuperiorShield Rollershield Air/Water Barrier – Cost and Value Leader
  • Master Wall® Standard Mesh with Medium Impact Resistance – Exceeds the competition

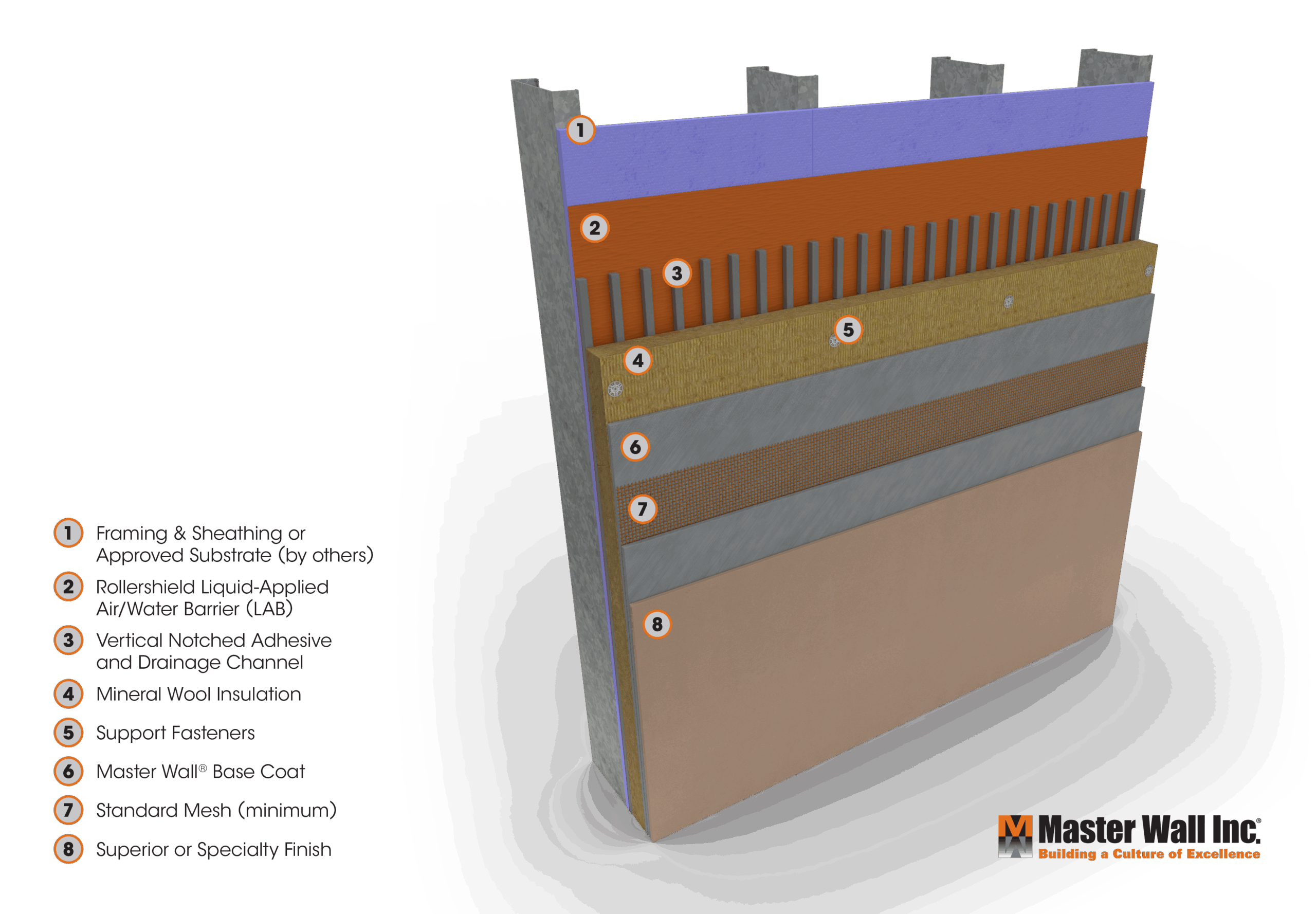

  1. Framing and Approved Substrate (by others)
  2. Rollershield Liquid-applied Air/Water Barrier (LAB)
  3. Vertical notched adhesive and drainage channel
  4. ROCKWOOL Frontrock® Mineral Wool Insulation Board
  5. Support Fasteners
  6. F&M or MBB Base Coat
  7. Mesh Reinforcement minimum
  8. Superior Finish or Specialty Finish

Premium Components

SuperiorShield  Air/Water Barriers

SuperiorShield Rollershield RS, a roll—or spray-applied air/water barrier, offers industry-leading air and water resistance and is tested to exceed industry air leakage requirements with one of the industry’s best air permeance performance results at high test pressures: ASTM E2178 (0.0002 cfm/ft2 ), ASTM E2357 (0.003 L/s.m2 @ 75 Pa, 0.02 L/s.m2 @ 300 Pa).

SuperiorShield Rollershield TG is the trowel-grade version of RS, with similar performance but a thicker 62 mil application thickness.

SuperiorShield Rollershield VB is the vapor barrier version of the SuperiorShield product line. It is a vapor impermeable Class 1 Vapor Retarder with 0.07 perms of vapor transmission.

Attachment Options

Master Wall® F&M and MBB are the primary adhesives for this system with a 30-year track record of performance.  Dow®  INSTA STIK™ Foam Adhesive may also be used to speed application.

Continuous Insulation Options
Mesh Options

Medium Impact Resistance is standard with Master Wall® with our Standard Mesh.  Improved mesh resistance is available up to Ultra High Impact Resistance.

The Best Finishes

Our Superior Finish line sets the standard in consistently colored textured finishes but our Specialty Finishes are where we shine.  Whether it’s the subtly mottled limestone look of Aggrelime or our new CIFS® Brick or CIFS® Wood Grain finish options, your building will always look its best while maintaining a continuous insulation.

Master Wall Inc.® Rollershield Drainage CIFS® Type MW Typical Details

RDCIFSMW-01STANDARD AND IMPACT CROSS SECTIONPDF3D WAREHOUSE
RDCIFSMW-02TYPICAL INSULATION ATTACHMENTPDF3D WAREHOUSE
RDCIFSMW-03TYPICAL SUPERIORSHIELD APPLICATIONPDF3D WAREHOUSE
RDCIFSMW-04TYPICAL INSULATION BOARD LAYOUTPDF3D WAREHOUSE
RDCIFSMW-05STUCCO WEEP SCREED TERMINATIONPDF3D WAREHOUSE
RDCIFSMW-06FLASHING ANGLE TERMINATIONPDF3D WAREHOUSE
RDCIFSMW-07DRAINAGE TRACK TERMINATIONPDF3D WAREHOUSE
RDCIFSMW-08DV ROLL TERMINATIONPDF3D WAREHOUSE
RDCIFSMW-09TERMINATION AT PAVEMENTPDF3D WAREHOUSE
RDCIFSMW-10TERMINATION AT SUPPORTED SLABPDF3D WAREHOUSE
RDCIFSMW-11TYPICAL STOREFRONT WINDOW HEADPDF3D WAREHOUSE
RDCIFSMW-12TYPICAL STOREFRONT WINDOW JAMBPDF3D WAREHOUSE
RDCIFSMW-13TYPICAL STOREFRONT WINDOW SILLPDF3D WAREHOUSE
RDCIFSMW-14TYPICAL FLANGED WINDOW HEADPDF3D WAREHOUSE
RDCIFSMW-15FLANGED WINDOW JAMBPDF3D WAREHOUSE
RDCIFSMW-16TYPICAL FLANGED WINDOW SILLPDF3D WAREHOUSE
RDCIFSMW-17TYPICAL HOLLOW METAL DOOR HEADPDF3D WAREHOUSE
RDCIFSMW-18TYPICAL HOLLOW METAL DOOR JAMBPDF3D WAREHOUSE
RDCIFSMW-19DECK FLASHING TERMINATIONPDF3D WAREHOUSE
RDCIFSMW-20TYPICAL PLUMBING SPIGOT DETAILPDF3D WAREHOUSE
RDCIFSMW-21TYPICAL PIPE PENETRATION DETAILPDF3D WAREHOUSE
RDCIFSMW-22TYPICAL DRYER VENT DETAILPDF3D WAREHOUSE
RDCIFSMW-23TYPICAL DOWNSPOUT ATTACHMENTPDF3D WAREHOUSE
RDCIFSMW-24TYPICAL SIGNAGE ATTACHMENTPDF3D WAREHOUSE
RDCIFSMW-25TYPICAL FIXTURE ATTACHMENTPDF3D WAREHOUSE
RDCIFSMW-26TYPICAL AESTHETIC JOINTSPDF3D WAREHOUSE
RDCIFSMW-27TYPICAL AESTHETIC PROJECTIONPDF3D WAREHOUSE
RDCIFSMW-28VERTICAL EXPANSION JOINTPDF3D WAREHOUSE
RDCIFSMW-29HORIZONTAL EXPANSION JOINT – WOOD FRAMEPDF3D WAREHOUSE
RDCIFSMW-30HORIZONTAL EXPANSION JOINT – METAL FRAMEPDF3D WAREHOUSE
RDCIFSMW-31FLOOR LINE DRAINAGEPDF3D WAREHOUSE
RDCIFSMW-32DISSIMILAR SUBSTRATESPDF3D WAREHOUSE
RDCIFSMW-33DISSIMILAR MATERIALSPDF3D WAREHOUSE
RDCIFSMW-34DISSIMILAR CLADDING TRANSITION CONTINUOUS WATER BARRIERPDF3D WAREHOUSE
RDCIFSMW-35DISSIMILAR CLADDING TRANSITION WITH FLASHINGPDF3D WAREHOUSE
RDCIFSMW-36SOFFIT/DRIPPDF3D WAREHOUSE
RDCIFSMW-37PARAPET CAPPDF3D WAREHOUSE
RDCIFSMW-38FLAT ROOF TERMINATIONPDF3D WAREHOUSE
RDCIFSMW-39SLOPED ROOF TERMINATIONPDF3D WAREHOUSE
RDCIFSMW-40ROOF KICK OUTPDF3D WAREHOUSE
RDCIFSMW-41CHIMNEY CRICKETPDF3D WAREHOUSE
